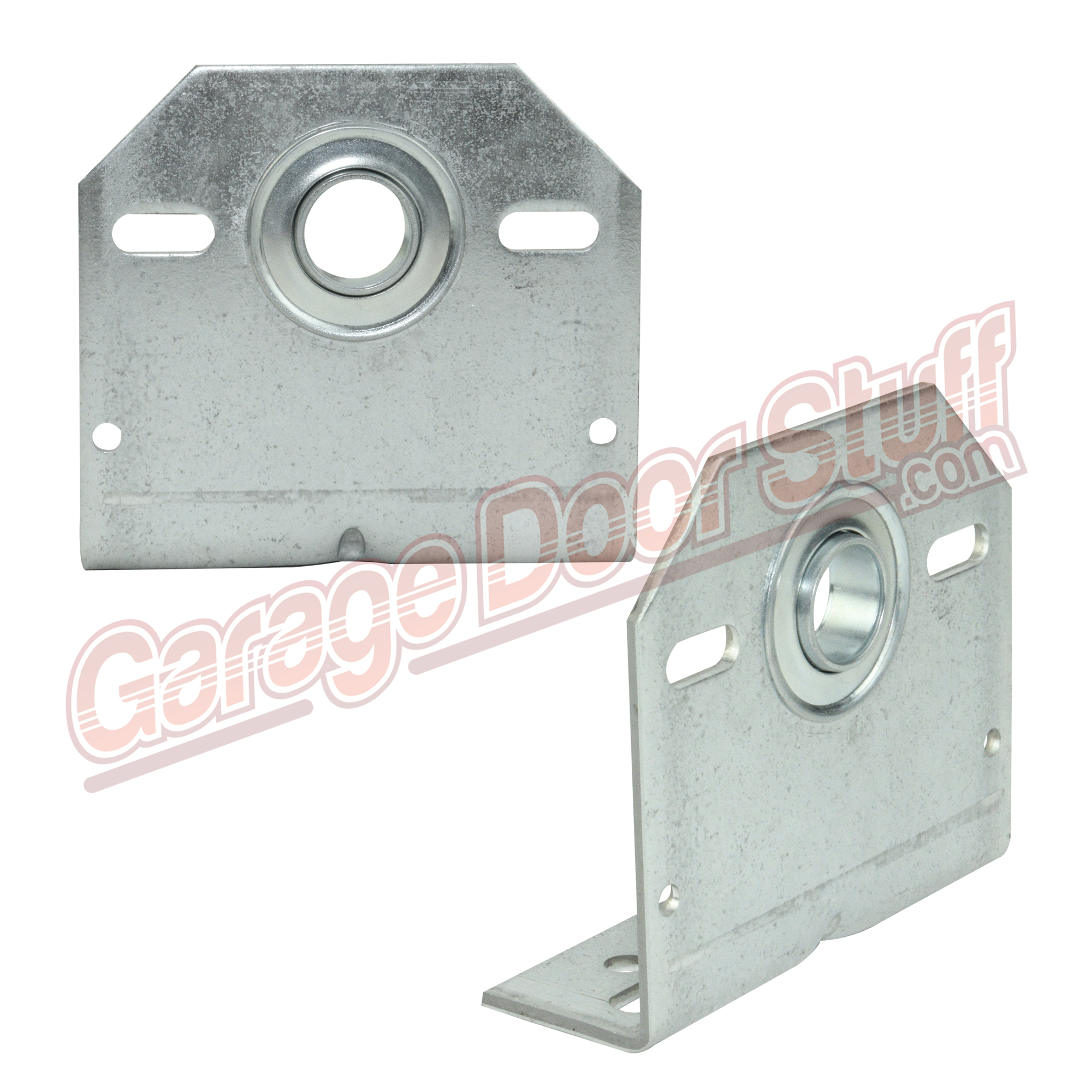

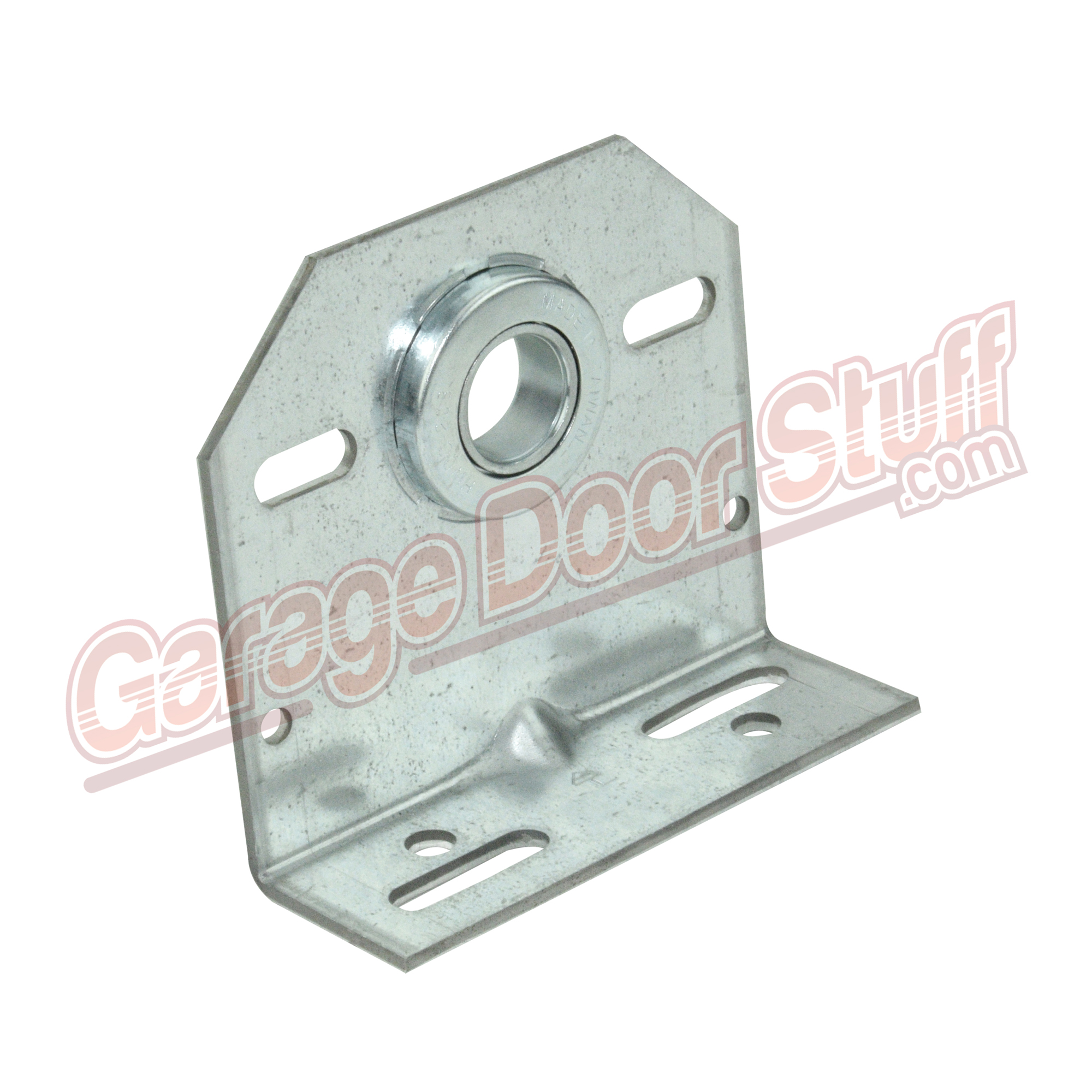

Garage Door Bearing Plate
Heavy Duty commercial grade – solid 1/8″ thick zink coated steel.
Can be used as a center bearing plate that the spring or springs attach to or as an end bearing plate.
The bearing plate can also be used as a shaft support bearing plate for opener or chain hoist installs.
Center bearing plate for torsion spring garage doors. Torsion spring mounts directly to this garage door center bearing plate.
Will work with a single torsion spring or a pair bolted together.
Slotted spring mounting holes accommodate many different stationary spring cones / hubs of various diameters.
1-3/4″, 2″, 2-1/2″, 2-5/8″, 3-1/2″ – inside diameter springs will all work with this garage door center bearing plate.
3-3/8” Center of Bearing
5-1/5″ Tall
1-1/4″ Wide Flange
Accepts 3/8” bolts – We stock several length 3/8 bolts, nuts and lock washers that work perfectly with this bearing plate, see out store category – Fasteners under – Click here – FASTENERS
We recommend using 3″ long lag bolts when fastening to a wood jamb or pad, find them here – LAG BOLT
Regardless of the size of the torsion spring or springs that you will be attaching to this bearing plate there will be a lot of spring tension attached to the bearing plate, therefore using the above mentioned 3″ lag bolts is highly encouraged.
For any questions or special ordering please Send us an email or call.
Good choice when upgrading from cheap, light weight bearing plates often provided with box store type garage doors.
Also a good bearing plate to use when converting from extension spring to torsion spring or when adding hi lift to a garage door.
This is a vary versatile bearing plate that can be used in many different applications.
We stock several other center bearing plate options, end bearing plates, flat bearing plates and bearings as well.
