Garage Door Opener TIMER

$58.31

Free Shipping On This Item

Universal Timer

Used for commercial garage door openers and gate openers

Gate Timer

Garage Door timer

Time to close switch

Description

Garage Door Opener TIMER

 Can be used with Gate Openers and many other powered, mechanical devices.

 Click to see cut sheet on this item

timer doc

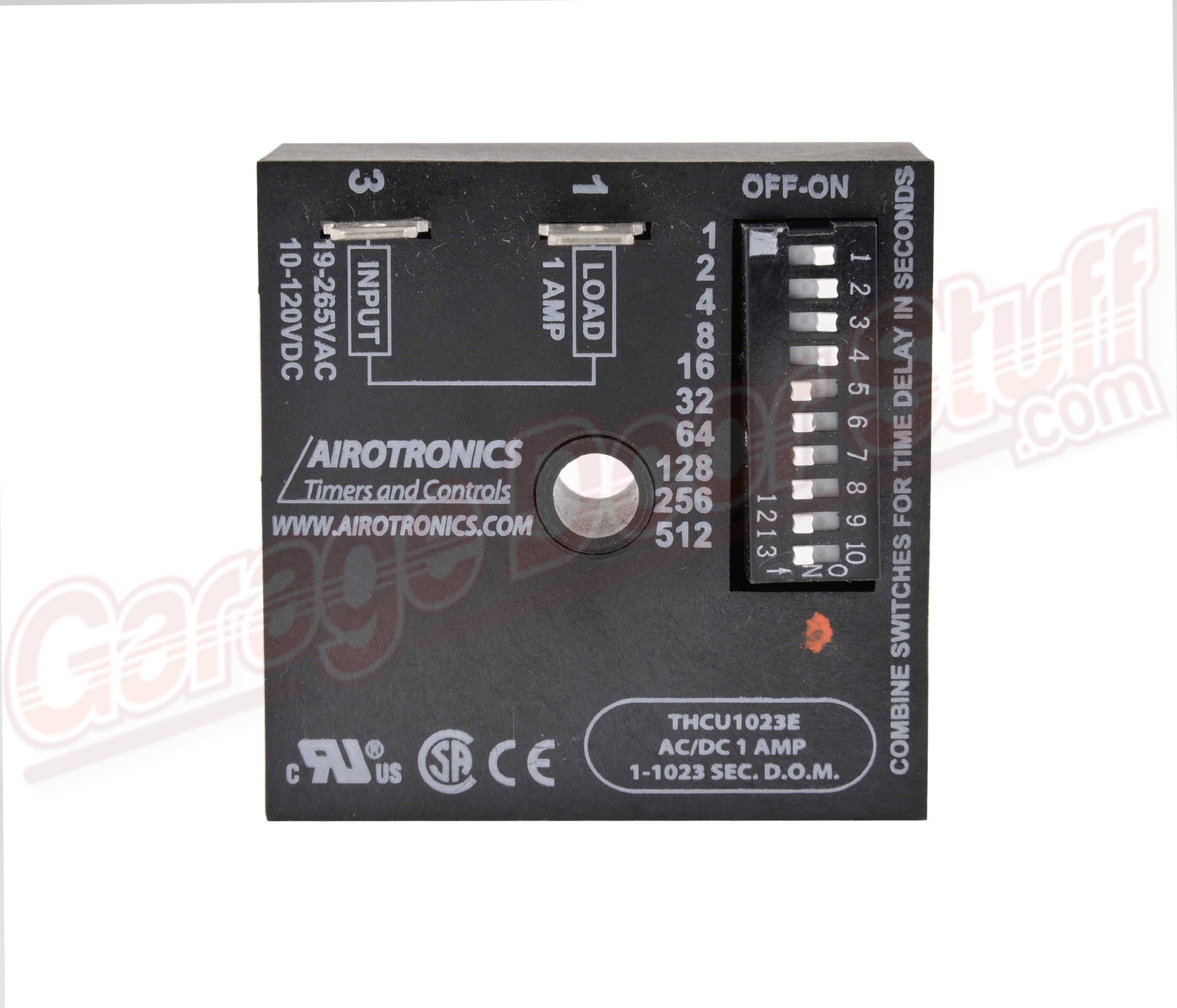

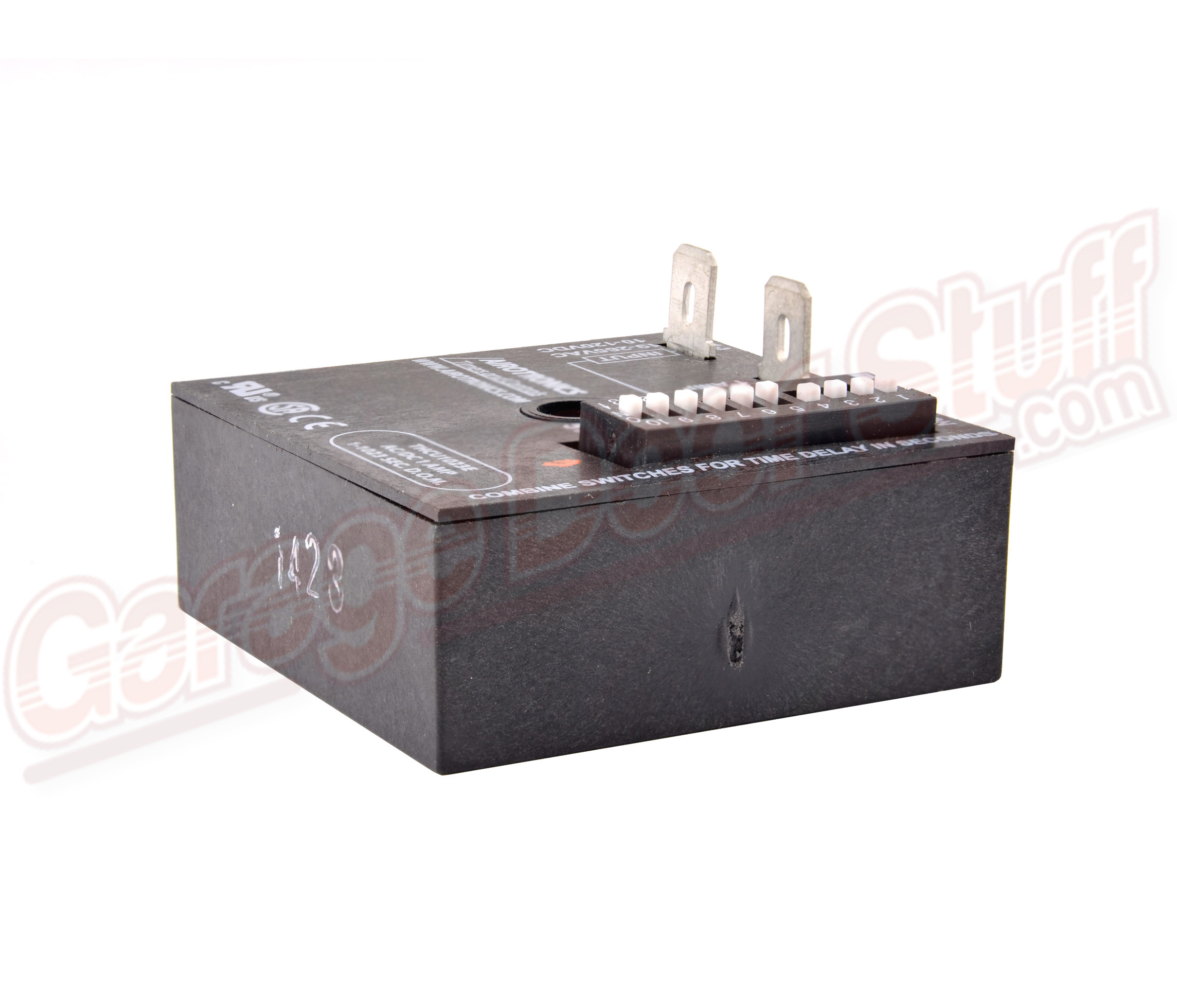

THCU Timer

THCU is a universal AC/DC voltage solid state timer in a compact 2″ x 2″ configuration. This unit features a wide range of operating voltage, 19 to 265 VAC and 10 to 120 VDC.

THCU-E offers three time ranges: 0.1 second to 102.3 seconds in .01 second increments, 1 second to 1023 seconds in 1 second increments OR, 10 to 10230 seconds in 10 second increments.

Ten binary dip switches are easy to program.

Advanced digital circuity provides this timing module with unsurpassed accuracy and reliability.

Garage Door Opener TIMER

Wide and universal operating voltage in a single unit:
operates from 19-265 VAC and 10-120 VDC
■ Operates at 50/60Hz
■ DC polarity independent
■ Precise timing accuracy in three ranges:
0.10 to 102.3 seconds in 0.1-second increments
1 to 1023 seconds in 1-second increments
10 to 10230 seconds in 10-second increments
■ Easy to program with 10-position binary dip switch
■ Digital timing accuracy
■ Time setting accuracy of ±5% of set point
■ Repeatability of ± 0.1%
■ Extremely low off-state leakage current
■ Fixed time periods available
■ Eliminates contactor “hum”
■ Compact, easy to hook up, in-line
installation
■ Vertical mounting option available
with MB-1 Bracket
■ Totally encapsulated for protection
from harsh environments
■ 100% Operational testing before shipping

■ RoHS compliance available

We are a full service garage door and garage door opener company with the knowledge and desire to help you in any type of garage door or garage door opener repair.  We ship six days a week and we stock what we sell. We only stock professional grade parts, we do not stock any knock off or cheap imitation parts.  Everything we carry is made by and for the Garage Door Industry. All of our vendors stand behind their products so if there is ever any issues with anything we carry, not only do we stand behind the product but the actual manufacture or supplier does as well. We have developed long term relationships with our vendors and we only work with vendors that we trust. We are a family company and were in it for the long haul, we sell only garage door and garage door opener parts, we are here for you before, during and after your garage door or garage door opener repair and we want your project to be a rewarding and satisfying experience 100% of the way.

Thank you for the opportunity!

Garage Door Opener TIMER

Additional information

Weight .8125 lbs
Dimensions 2 × 2 × 1 in
