Garage Door Pulley

Description

Garage Door Pulley

COMPLETE EXTENSION SPRING REPAIR KIT

Replacing the pulleys on your door will make the door run

much smoother and prevent cable wear.

Replace the door cable and install

Safety cables – SAFETY CABLES ARE A MUST.

Safety cables prevent the spring from becoming a potentially

deadly projectile in the event of spring or cable failure.

Safety cables are the only thing that will keep the fully charged spring from becoming a projectile

PLEASE-INSTALL SAFETY CABLES ON YOUR EXTENSION SPRING DOOR

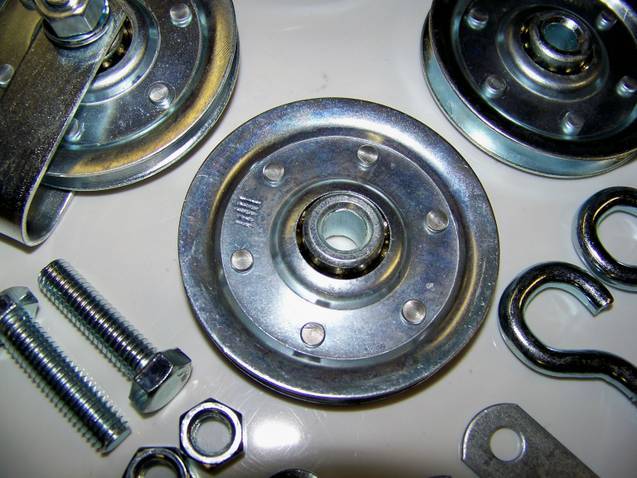

6  RIVETS IN EACH BALL BEARING PULLEY

Pulleys in this kit are rated: – 100 LB @ 10,000 – 8′ Door Cycles

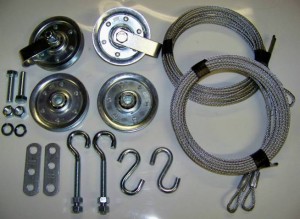

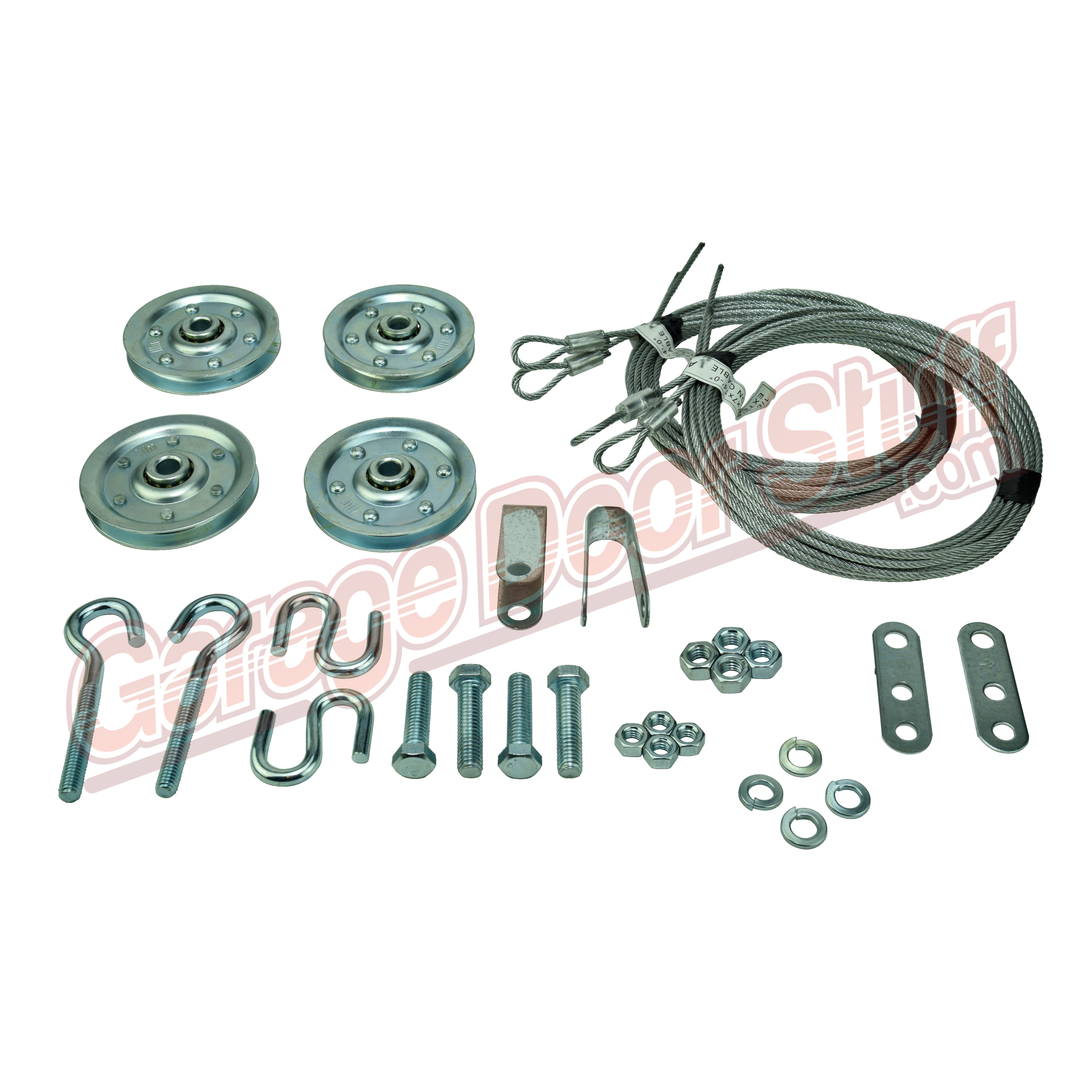

INCLUDED IN THIS KIT:

2 – 3″ STUD PULLEYS

2 – 3″ CLEVIS PULLEYS

4-3/8″ BOLTS

4-3/8″ NUTS

4-3/8″ LOCK WASHERS

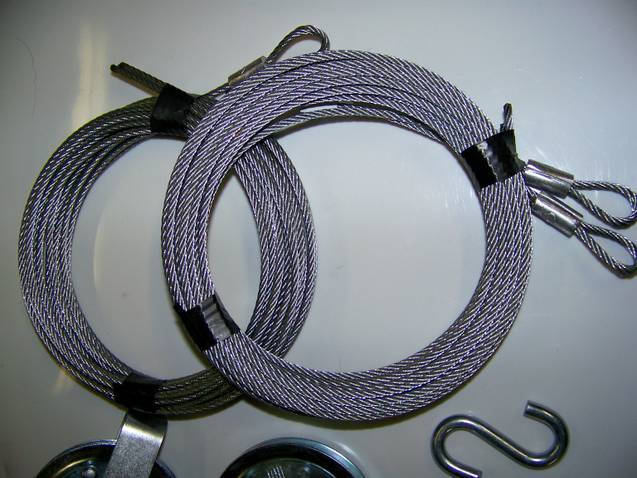

1 PAIR-1/8″ DOOR CABLE

1 PAIR-1/8″ SAFETY CABLE

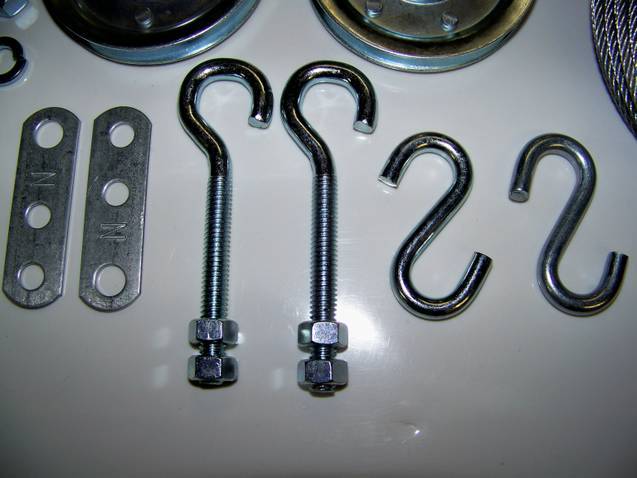

2-CABLE LACING BRACKETS

2-S HOOKS

2-5/16″ EYE BOLTS

4-5/16 NUTS

INSTRUCTION SHEET

REPLACING THE PULLEYS ON YOUR GARAGE DOOR MAKES THE WORLD OF DIFFERENCE

YOUR DOOR WILL RUN MUCH SMOOTHER. THIS IS NORMAL MAINTENANCE THAT CAN EASILY

BE DONE BY THE HOME OWNER.
