Description
HURRICANE PROOF GARAGE DOOR ROLLERS
ROLLER KIT FOR HURRICANE PROOF GARAGE DOORS
THESE ARE TOP QUALITY NYLON ROLLERS THAT
WILL OUT LAST A STEEL ROLLER AND
WILL MAKE YOUR DOOR MORE QUITE
BY 75% OVER STEEL ROLLERS
THIS KIT MAINTAINS THE HURRICANE RATING WHILE
PROVIDING QUALITY ROLLERS FOR YOUR DOOR
LONG STEM ROLLERS ARE INSTALLED
IN THE TOP AND BOTTOM FIXTURES
SHORT STEM ROLLERS ARE INSTALLED
IN MIDDLE HINGES
PUSH NUTS ARE INSTALLED ON THE
ROLLER SHAFT OF THE SHORT STEM ROLLERS

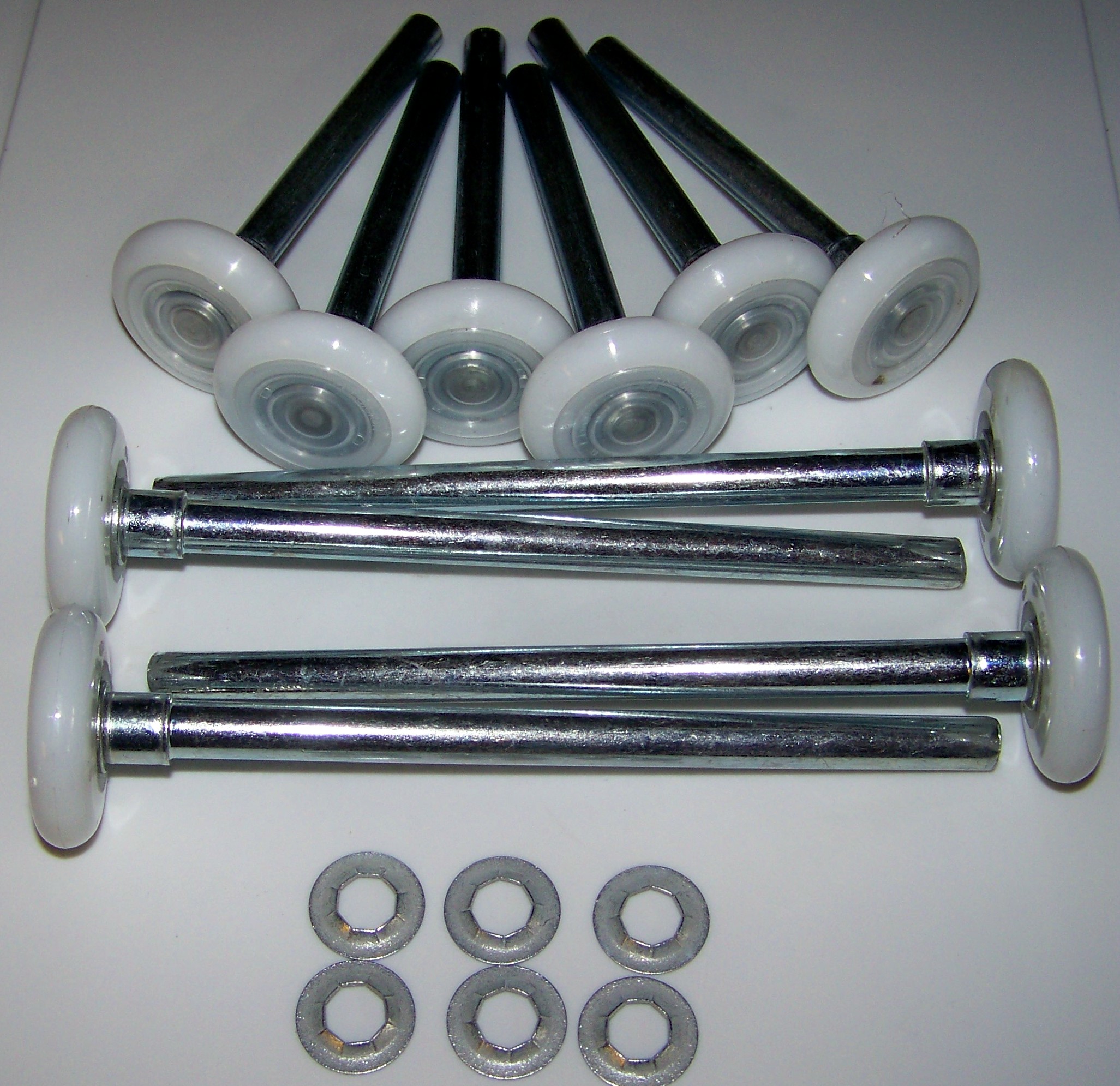

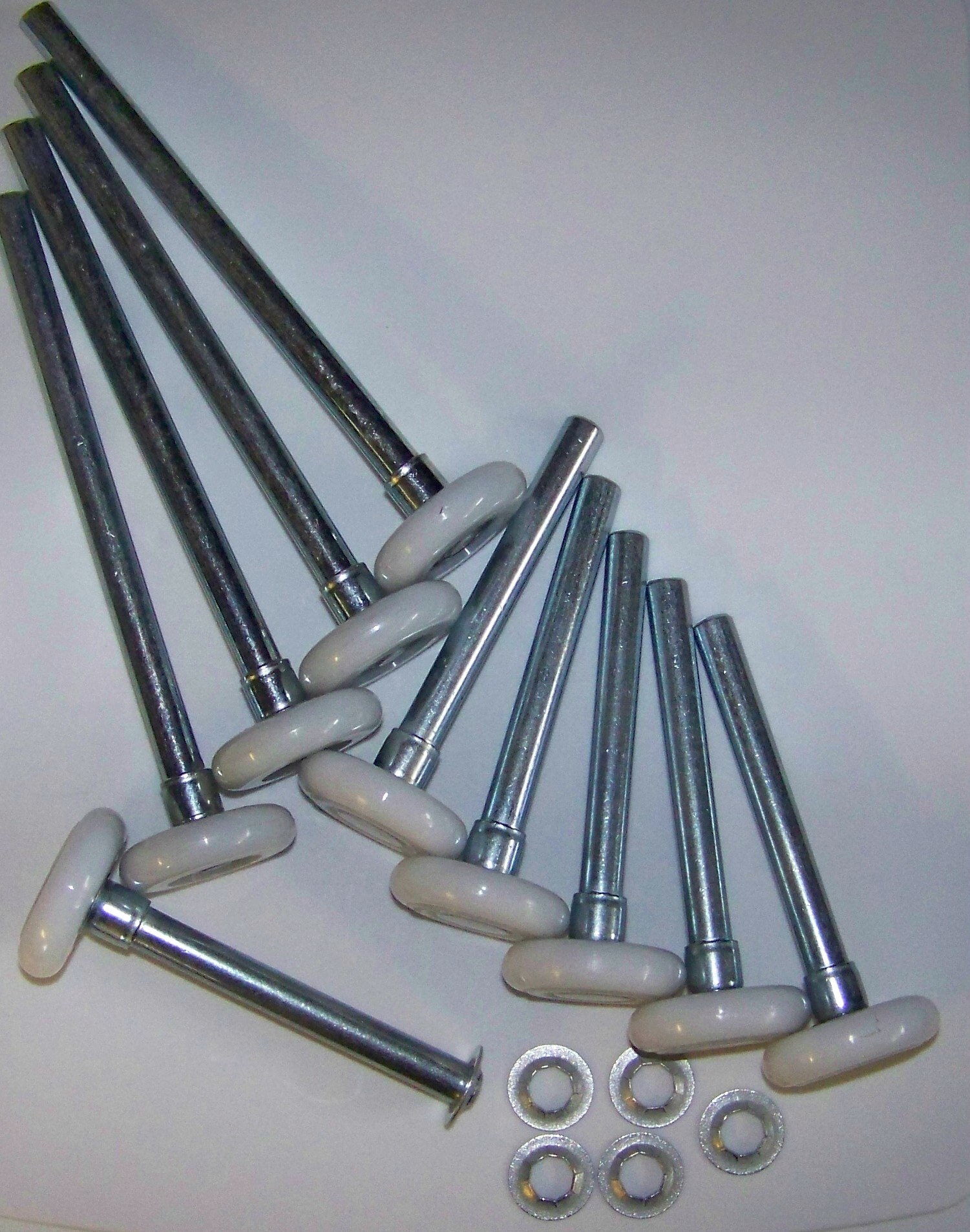

KIT INCLUDES:
4 – LONG STEM NYLON ROLLERS
6 – SHORT STEM NYLON ROLLERS
6 – PUSH NUTS

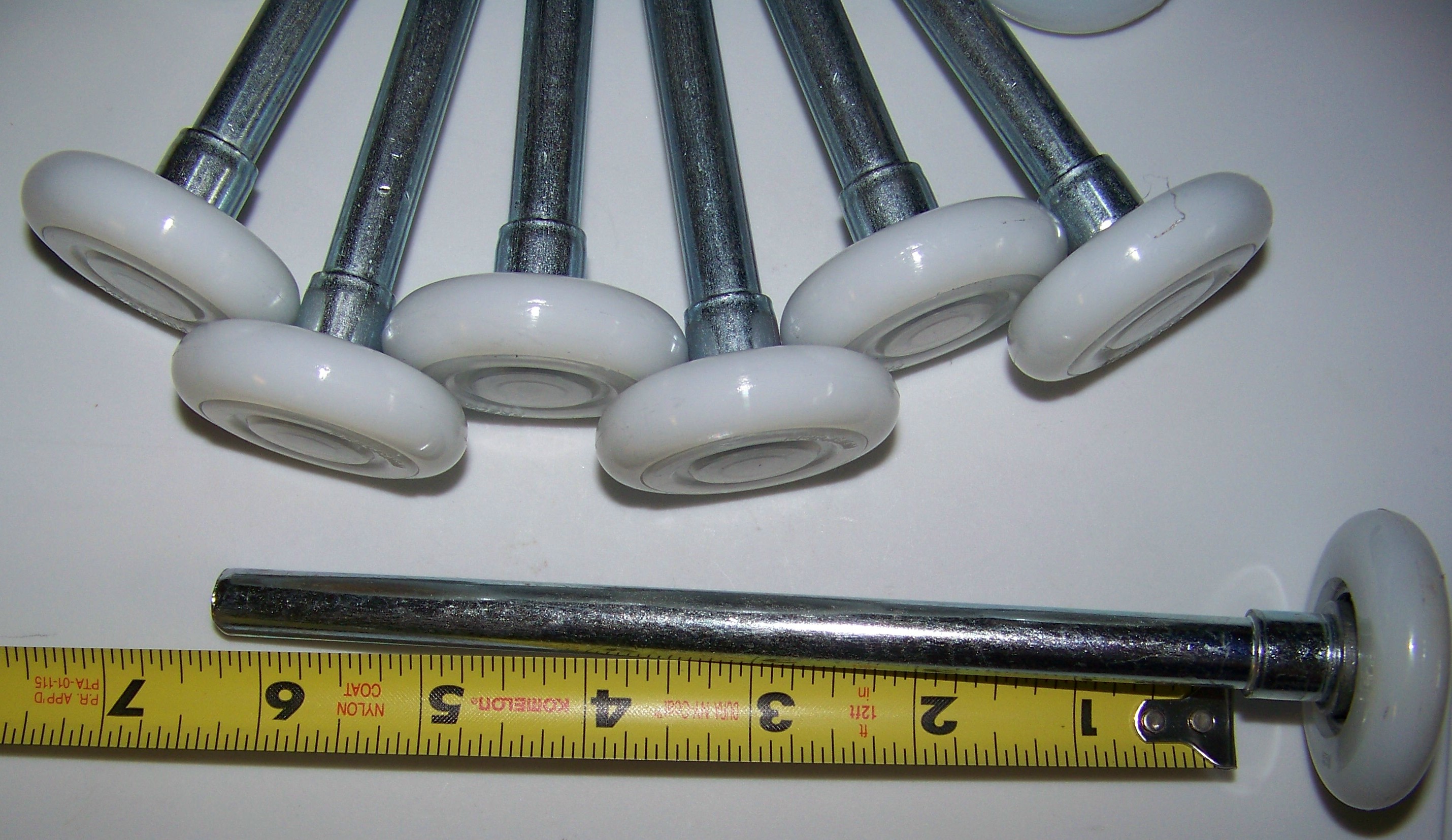

LONG STEM ROLLERS
11 BALL BEARING
NYLON
6-3/4″ STEM
1/2″ SHOULDER
7/16″ DIA. STEM
1-13/16″ WHEEL DIA.
SHORT STEM ROLLERS
13 BALL BEARING
SEALED BEARING
NYLON
4-5/8″ OVERALL
4-1/8″ SHAFT
1/2″ SHOULDER
7/16″ ( 11.09″) SHAFT THICKNESS
1/2″ WHEEL THICKNESS
1-13/16″ WHEEL DIA.
INSTALL TIP:
USE A SOCKET TO INSTALL THE PUSH NUT
THE PUSH NUT WILL FIT TIGHTLY TO THE
ROLLER SHAFT
ROLLER SHAFT MUST SLIDE BACK
AND FORTH WITHIN THE HINGE
DO NOT SET THE PUSH NUTS ALL
THE WAY TO THE DOOR HINGE
